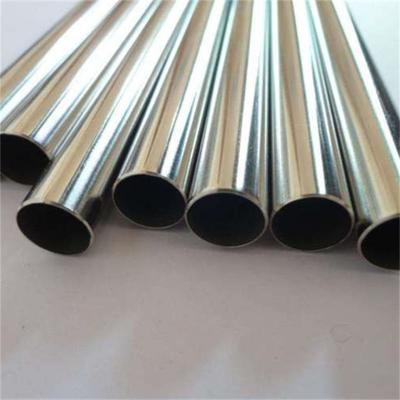

光亮退火管，ASTM A213 TP321，1.4541，UNS S32100不锈钢无缝管

Product Details:
Place of Origin:China
Brand Name:	YUANFANG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A269 TP316L
Payment & Shipping Terms:
Minimum Order Quantity:	1000kgs
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C
Supply Ability:	1000 tons per month

产品详情:

规格：

ASME SA213/A213：无缝铁素体和奥氏体合金标准规范-

钢制锅炉、过热器和不锈钢换热器管。

ASTM A269/A269M：焊接奥氏体钢锅炉、过热器标准规范

热交换器和冷凝器管。

其他标准：DIN 17456、DIN 17458、EN10216-5、GOST 9940-81、GOST 9941-81、JIS-G3463。。。

Material Grades:

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Others:TP405,TP409, TP410, TP430, TP439,...

1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ

Size Range:

Production	Outside Diameter	Wall Thickness
Heat Exchanger Tube	6.00mm to 101.6mm	0.5mm to 8mm

Final Finishing: Solution Annealed & Pickled/Bright Annealed.

Type of Tubes: U-bend & Straight

Quality Tests:

Corrosion Test	Conducted only when specially requested by the client
Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections

应用

石油工业

食品加工设备

化学化学

造纸和纸浆厂

化肥工业

核电厂

流体、天然气和石油运输

压力和热量传递

建筑和装饰

锅炉

热交换器

标签：光亮退火不锈钢管，不锈钢盘管，焊接钢管
